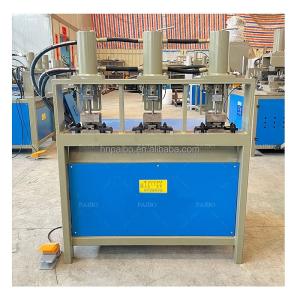

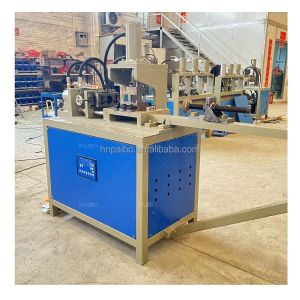

    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine

    Ask Lasest Price
    Brand Name : PAIBO
    Supply Ability : 60 Set/Sets per Month
    Price : negotiable
    Delivery Time : 35
    • Product Details
    • Company Profile

    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine

    Product Description
    Square Tube Punching Corner Machine with 90 Degree Corner Cutting
    1. Punching Machine Suitable for Material : can punch steel pipes , Aluminum Pipes , Zinc-iron Pipes ,
    Galavized Pipes Ect for windon , door , security fence , Bed making ect
    .
    2.Through Changing Mold can produce different shape and size Holes for different pipes
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    1
    Model
    10--60 Ton
    2
    Punching thickness
    Τ0.5~τ11mm
    3
    Hole
    round pipe
    Φ16~Φ120 mm
    Square tube
    20×20~150×150 mm
    rectangle pipe
    15×30~60×150 mm
    Angle iron
    30×30~75×75mm
    channel iron
    25×50~60×120mm
    4
    Hole distance
    CNC control
    5
    Punching speed
    70-120 Times/Min
    6
    Longest distance between holes
    CNC control
    7
    Standard length
    customized
    8
    Main Motor Power
    7.5Kw
    9
    Engineering Motion Classification
    1.Single puncturing operation
    2.Irregular interval puncturing
    3.Regular interval puncturing
    4.360°rotating puncturing
    10
    TFT human machine interface
    Human machine interface
    11
    control system
    touch controllable display setting ,Chinese and English exchange
    12
    Memory Function
    can be stored and memorized 0-99 groups processing mode
    13
    Overall Dimension
    6300×1500×1700mm
    14
    Weight
    3000Kg
    Square Tube Punching Corner Machine with 90 Degree Corner Cutting:

    This machine can choose different molds according to different pipe diameters and different processing styles. The following is a display of some of the finished products
    The mold display of some products, we can also customize according to your requirements
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine

    01 How to get to know the machine very well?
    Machine'Solution from our chief engineer, based on your rawmaterials,final product, and other detailed requirements from you.Supporting customization, Voltage changing, Plug type to fit foryour local. etc.Providing Machine video and photo give youdirect feeling about our machine

    02 How to pay?
    Usually Half as deposit,half as balance or full paymentBy TT,L/C,Western Union,Paypal,VISAMASTECARDE-CHECKING By Trade assurance paying online inUSD OR CNY
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    4kw Hydraulic Angle Iron Square Pipe Punching Machine and Square Tube Folding Machine
    Trade Assurance protects your order safety in the event of a supplier failing to meel your contractrequirements on order quantity, product quality, and on-time shipment.
